Luftbox 800: Perfect climate with small units
For air capacities from 400 to 960 m³/h, HANSA provides the "Luftbox 800" with different installation types. The concept behind this product line enables cost-effective manufacturing with simultaneous flexibility and application freedom thanks to modularisation.
Outstanding features of our Luftbox:
- High quality standard
- Short delivery time
- Cost-effective operation
- Easy installation
- High corrosion resistance
- Double shell construction with mineral wool insulation
- Operating doors with safety catch
Our Compact Line units

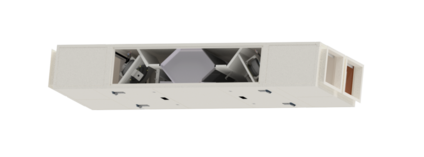

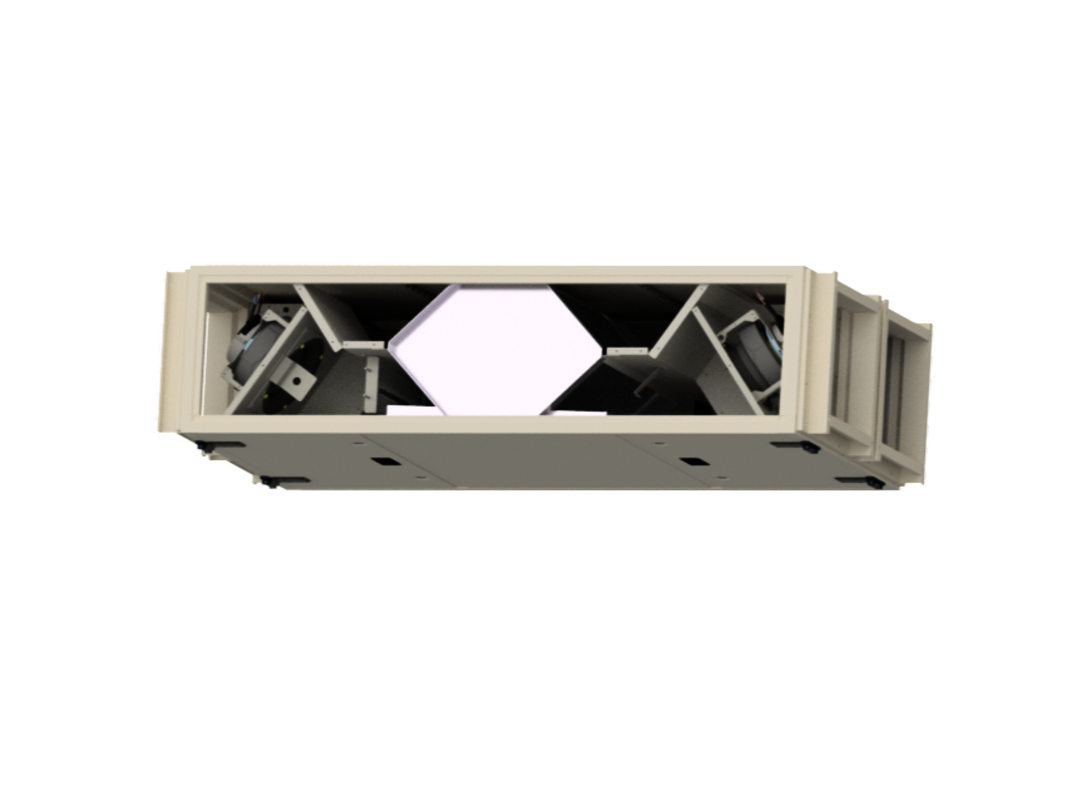

- Compact unit for ceiling or wall mounting
- Airflow rates from 400 to 960 m³/h possible
- Highly efficient counterflow heat and moisture recovery, eliminating the need for a condensate drain
- Integrated 1.6 kW electric heater for reheating
- Integrated control system
- Carbon dioxide sensor in the exhaust air for demand-based airflow control
- Smoke detector optionally available
- Optional sound insulation modules
- Integrated supply and exhaust air dampers
- Compliant with VDI 6022 (hygiene guidelines)
- Plug and play

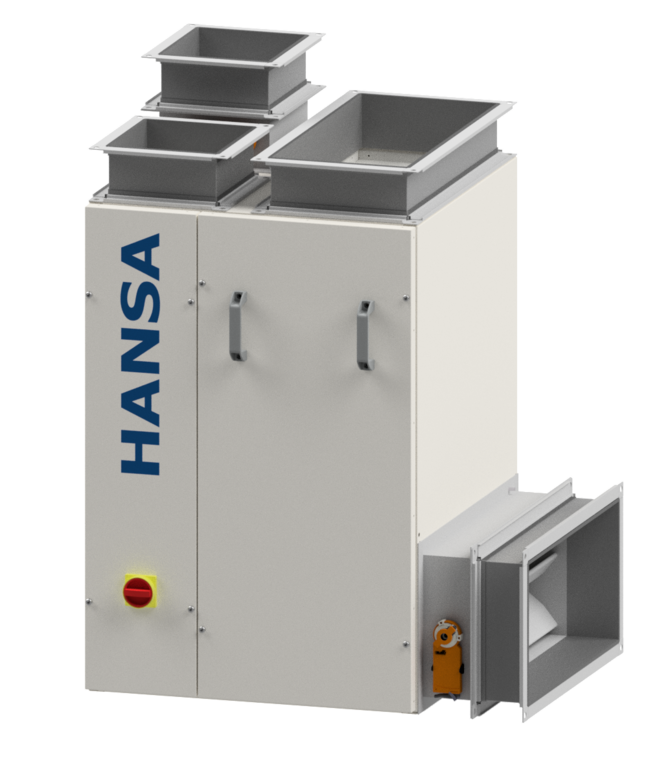

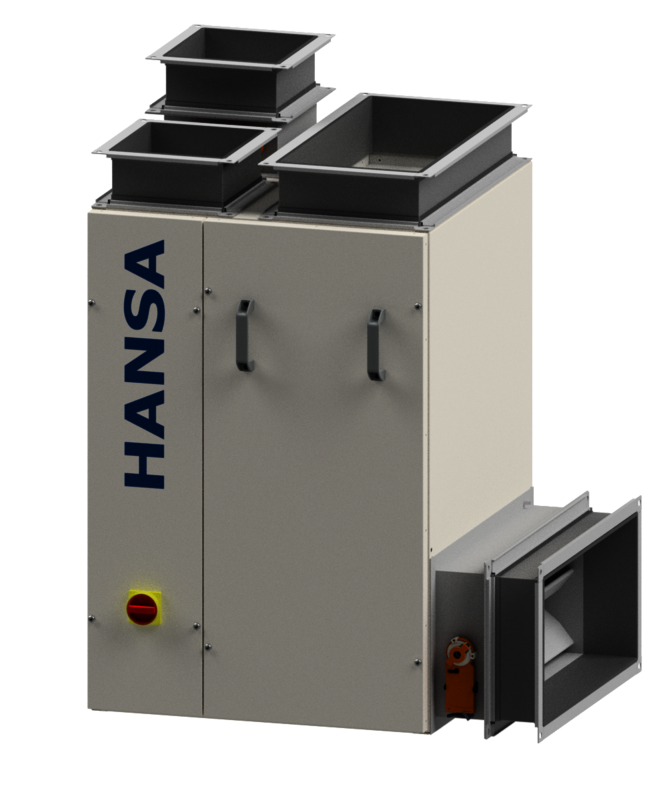

- Compact floor-standing unit
- Side-mounted outdoor air connection, top-mounted supply, exhaust, and return air connections
- Airflow 400–960 m³/h
- Highly efficient counterflow heat recovery, optionally with humidity recovery
- Optional 1.6 kW electric heater integrated into the supply air duct
- Integrated control system
- Optional carbon dioxide sensor in the exhaust air duct for demand-based airflow control
- Smoke detector can be optionally connected
- External external louvers for both outside and return air
- Compliant with VDI 6022 (hygiene guidelines)
- Plug and play
Areas of application: Schools, gyms, fitness studios, meeting rooms, offices, ancillary facilities in swimming pools, retail outlets, doctors' and therapy practices.
This stylish device is ideal for retrofitting rooms for decentralized air supply.

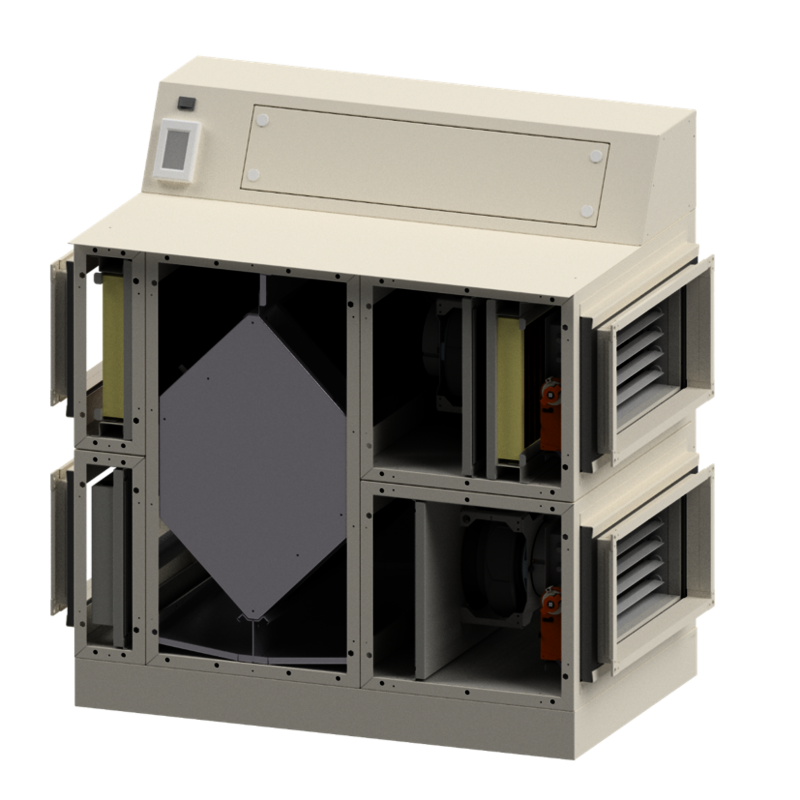

- Compact, stylish unit for floor mounting
- Airflow rates from 400 to 960 m³/h possible
- Highly efficient counterflow heat recovery and optional humidity recovery
- Integrated condensate pump (units without humidity recovery)
- Integrated supply and exhaust air dampers
- Integrated control system
- Carbon dioxide sensor in exhaust air for demand-based airflow control
- Smoke detector can be connected optionally
- Optional: Integrated 1.6 kW electric heater for reheating after heat recovery
- Optional sound insulation modules available for floor mounting
- Compliant with VDI 6022 (hygiene guidelines)
- Plug and play
Super robust, super efficient, super modular and super quiet!
Compact Line units as BIM files
Our compact devices can be downloaded as Revit family files for any possible configuration. This makes the integration of the units into your planning even easier.
