Compact unit series from HANSA

For air capacities from 800 to 8000 m³/h, HANSA provides modules for the realisation of compact air handling units. The concept behind this product line enables cost-effective manufacturing with simultaneous flexibility and application freedom thanks to modularisation.

Outstanding features of our compact units:

  • High quality standard
  • Short delivery time
  • Cost-effective operation
  • Easy installation
  • High corrosion resistance
  • Double shell construction with mineral wool insulation
  • Operating doors with safety catch

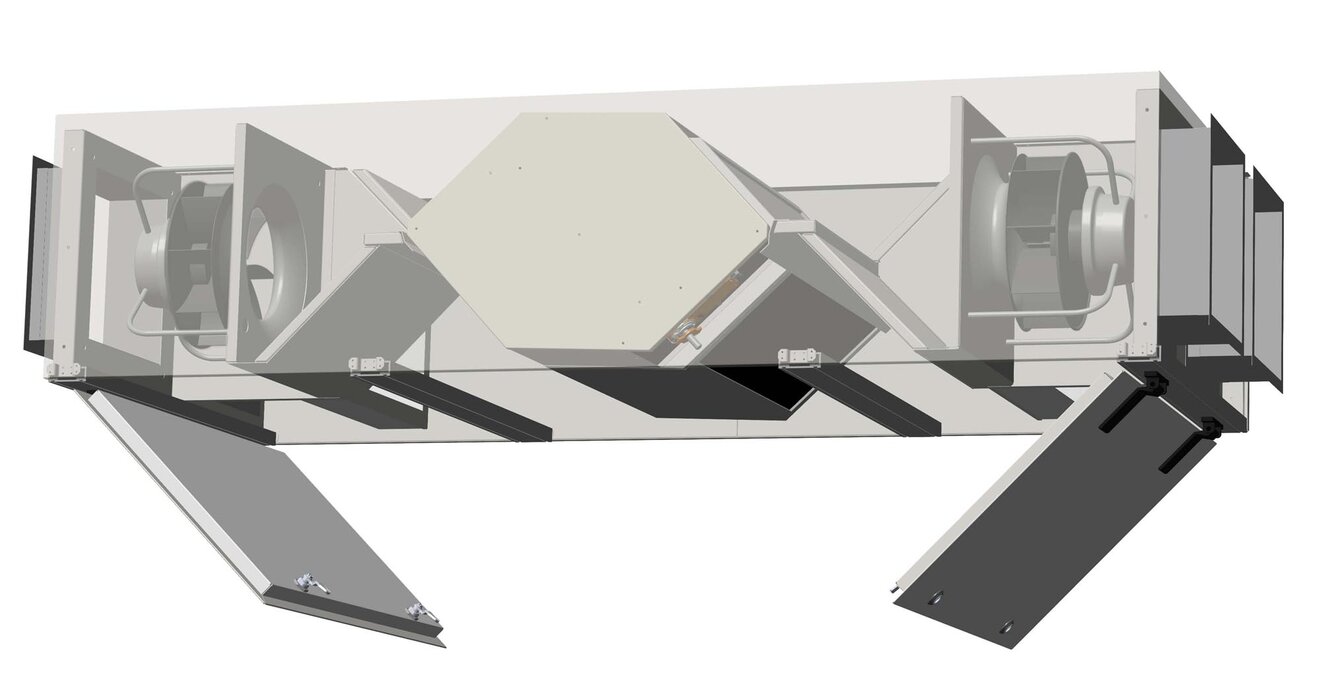

  • Flat units with highly efficient counterflow heat recovery
  • Configurable for flow rates from 1000 to 3000 m3/h with technical equipment adapted to your needs
  • Eurovent certification
  • Various control systems: Siemens, Saia, HEC
  • VDI 6022 compliant (hygiene directive)

  • Flow rate 600 - 960 m3/h
  • Ext. pressure 400 Pa
  • Heat recovery: Counterflow, optionally with moisture recovery
  • Integrated control cabinet with HEC control
  • Electric heating coil (optional)
  • VDI 6022 compliant (hygiene directive)

Application areas: schools, sports halls, gyms, meeting rooms, offices, ancillary facilities for swimming pools, retail outlets, medical and therapy practices.

Our Luftbox 800 air box is particularly suitable for retrofitting highly efficient decentralised air handling units in classrooms.

  • Perfectly suited for decentralised retrofitting
  • Modular design: Optionally available with sound attenuation modules for ultra-quiet operation, or with the option of having duct silencers installed by the system manufacturer
  • Supply air / exhaust air, left or right
  • Free discharge or installation of ventilation ducts
  • Cross-flow / counterflow heat recovery, also with moisture recovery
  • Ready to plug in, 230V
  • RAL 9002 (white) or RAL 7016 (anthracite)
  • Needs-based flow control depending on the CO2 content of the exhaust air, 400 - 800 m3/h
  • Optionally with integrated smoke detector
  • Optionally with integrated presence detector
  • Operation via touch screen
  • Optional electric post-heating coil
  • 300-watt electrical input power at 800m3/h
  • Basic unit dimensions: 1053 x 685 x 950 mm (L x W x H) without connection piece and operating hood
  • VDI 6022 compliant (hygiene directive)

Super robust, super efficient, super modular and super quiet!

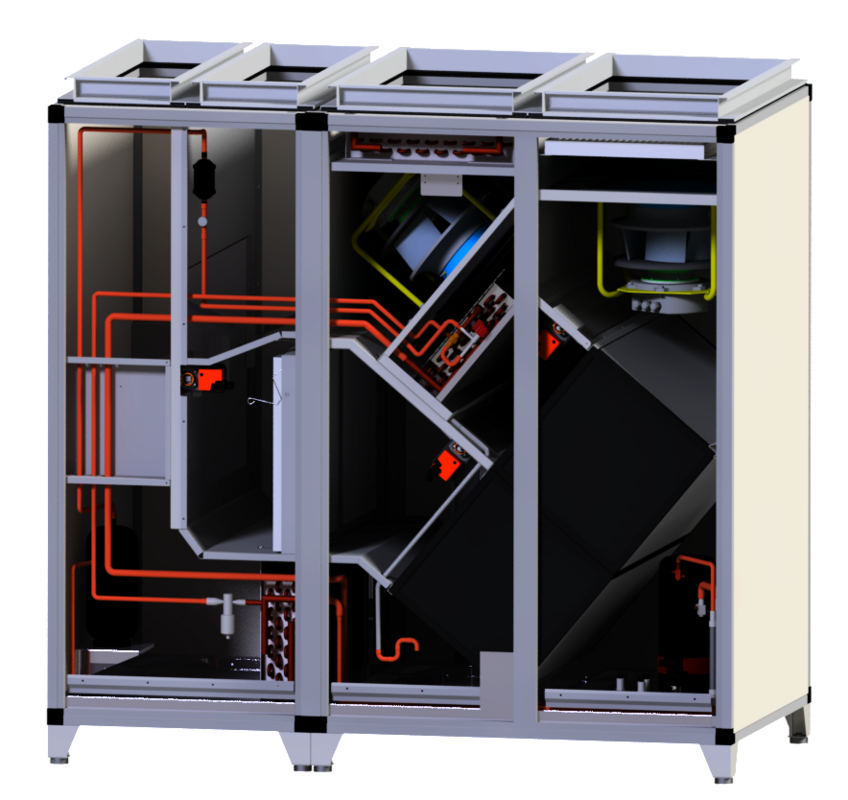

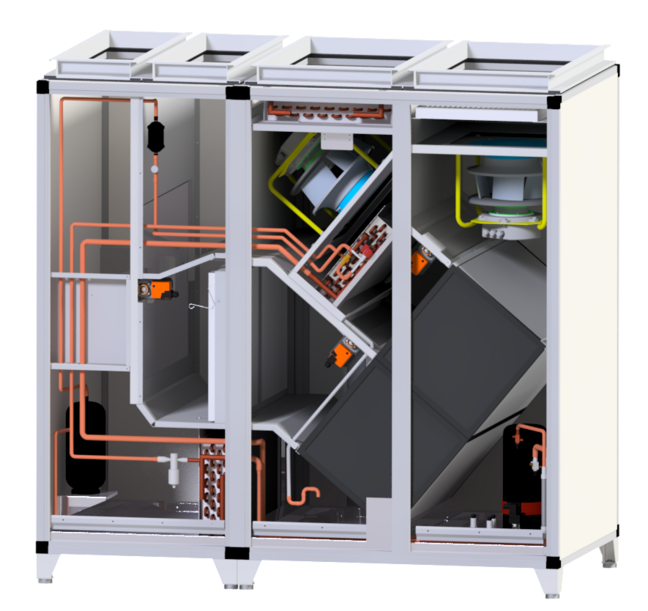

  • Flow rate of 1500 to 3400 m³/h
  • Ext. pressure 400 Pa
  • Heat recovery: Double plate exchanger (cross counterflow arrangement)
  • Optionally available with chiller / heat pump / cold water coil
  • DDC integrated
  • VDI 6022 compliant

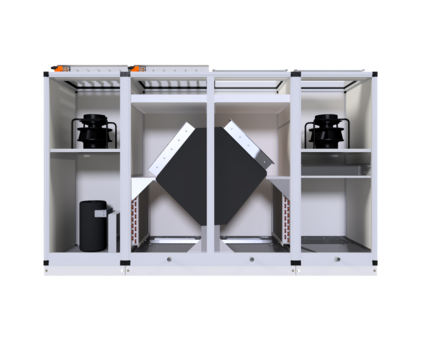

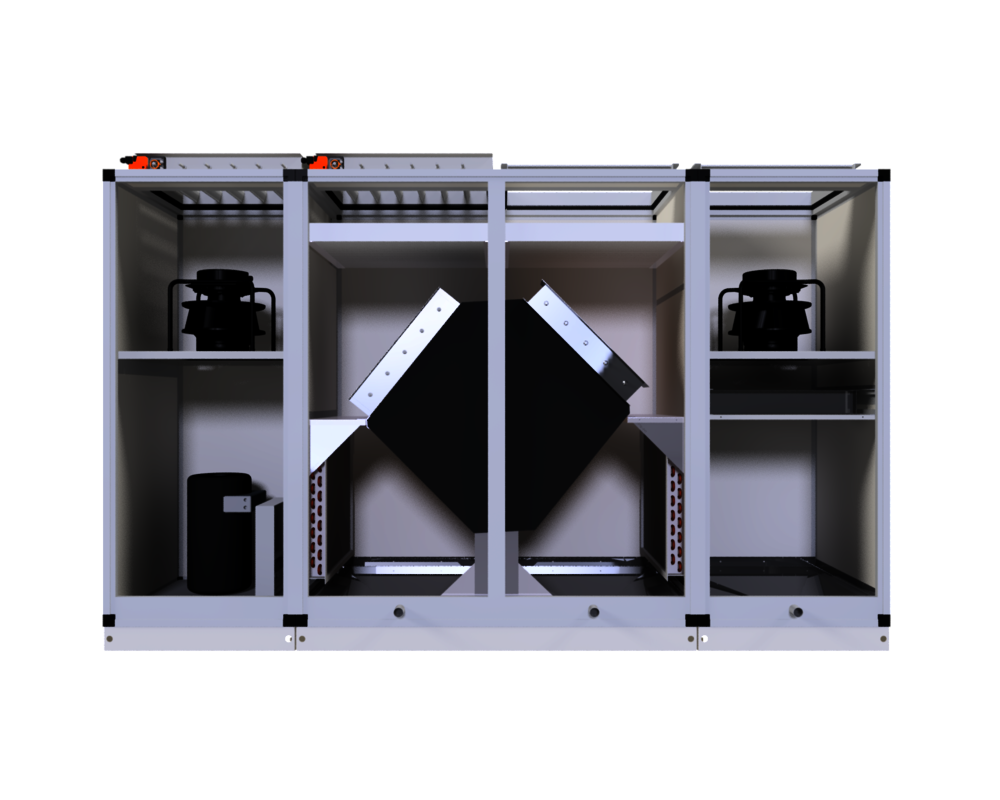

  • Flow rate of 4000 to 8000 m3/h
  • Connections on top, AU and ZU optionally, also possible on side
  • Ext. pressure 400 Pa
  • Heat recovery: Counterflow
  • Optionally available with chiller / heat pump / cold water coil
  • DDC integrated
  • VDI 6022 compliant



Compact Line units as BIM files



Our compact devices can be downloaded as Revit family files for any possible configuration. This makes the integration of the units into your planning even easier.





BIM Download
